Apollo Neo 2 (Dimmable) White

$38.85 NZD

Sale Sold out

Colour (Temperature) 3K 4K

Quantity

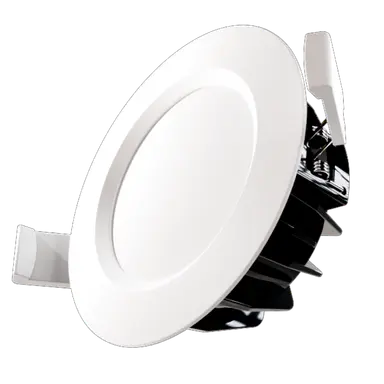

Apollo Neo 2 is our latest advance in our smaller style luminaires. Neo
boasts a superb light output, features a low profile design and carries a long
7 year warranty2. Apollo Neo 2 is the product to use in new developments.

Key Features

12 Month Guardian Service
Now backed for 12 months from purchase, if your light doesn’t work
within our specifications we’ll arrange to have the product replaced
and/or repaired at our cost.
90+ CRI Colour Rendering
Experience smooth crisp light with 90+ CRI colour rendering
technology for more accurate colours than ever before.
Long Life by Design
Boasts a 50,000hr L70 rated lifespan for long term ownership.
Low Profile Design
Fits under building elements and is fully insulation coverable.
Beautiful Trim Aesthetic
High lens to trim ratio and our thinnest Razor Trim™ yet.
Assembled in Christchurch
Supporting extremely high quality standards and a local workforce.

Product Specifications

Model	Details
Dimensions	38.8mm (Height) x 99mm (Width) x 87mm (Minimum Cutout)
ICF- Rated Lamp	YES (Abutted & Covered - Fire Tracking Resistance)
IC Rated Driver	YES (Phoenix Series™ 3 Dimmable)
Material Clearance	SCB=0 HCB=0 MCB=0
Ingress Protection	IP65 - Bathroom / Soffit Suitable
Light Colour (CCT) Options	3000K 4000K
Trim Colours	White
Lamp Power (W)	11W System
Lumen Output (lm)	Up to 900lm
Colour Rendering	~90 CRI (Typical)
Cutout Parameters	87-94mm - 90mm Hole Saw Recommended
Dimmable	Yes - Leading + Trailing Edge
Warranty	7 Year Lamp & Driver (Residential) 5 Year Lamp & Driver (Commercial) 12 Month Guardian Service
Beam Angle + Lens Options	120° Diffused Lens
Material	Aluminium Powder Coated
Diode Colour Binding	3-SDCM Diode Binning 3-Step MacAdam Ellipse
Dimmer Specifications	0-100% - Monotonic Dimming Range Capability. Suitable for Leading Edge/ Trailing Edge/ Digital Dimmers Dimmable Model - Phoenix Series™ 300mA. IC Rated/ 31 V DC (CC) Microprocessor Regulated with ADAPTIV™ Processor Core. Features - Extra large Input Terminals/Screwless Terminal cover. Long life design. THERMACORE™ thermal regulation technology.
AS/NZS 61000.4.5 Surge Class	0.5KV Class C (Luminaires & independant auxilaries)
EMC	EN 55015

1. Subject up to a +-7% light production tolerance. Guidance only and varies with optical, power, and electromechanical variance. See product datasheet for more detailed information.
2.Product warranty disclosure statements and full details can be found by viewing our Warranty Documentation, Guardian Service Agreements for commercial and residential products and by viewing our terms of
service. All documentation can be found on the Visionary Technologies website under the support menu.
3. Processor ability. Not applicable to all dimmer mechanisms. Specifications are provided on an ‘as is’ basis and are subject to change without notice. View product datasheet for more comprehensive dimmer
related data
4. Refers to the front of the lamp. Rear of lamp is IP40.
5. All CRI values are measured at Tj = Tc = 25°C. CRI values are minimums. Visionary maintains a ± 3 tolerance on CRI values.
6. Nominal CCT as defined by ANSI C78.377-2011.
7. This prodvct is <.las.s classed as a ‘less lhan Ql equal to’ 2SW luminaire.
